A-4K Skyhawk

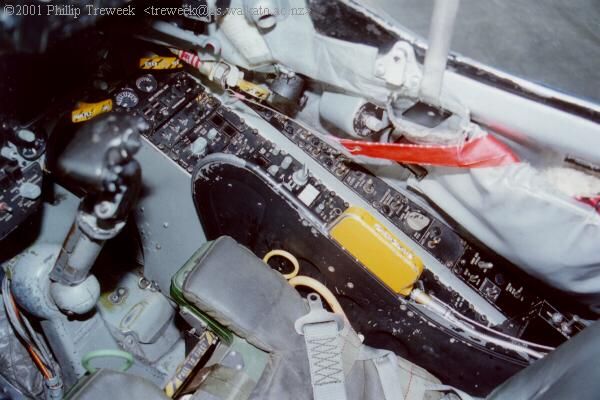

Taken at Ohakea, December 13, 2001. Cockpit - starboard console. Above the control column are the 'T' handles (yellow and black) for the manual overide of hydraulic power to the flight controls and the Emergency Generator (RAT). To the right of these can be seen canopy release handle. Looking along the console from the front are the rudder and horizontal stabiliser trim indicators, RWRs control panel, CDS control panel, INU control panel, and Nav select panel. Partially obscured by the seat are the ARC-159 UHF radio, IFF controller, internal lighting controller, and at the rear is the TACAN panel. On the secondary panel are lighting, airconditioning and other environmental controls.
