Aermacchi MB339-CB

NZ6464

MB339

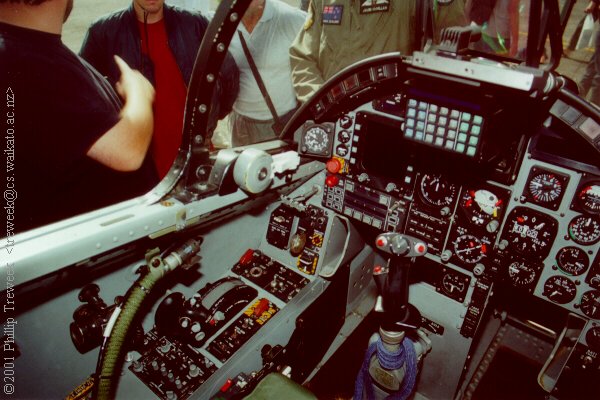

Taken at Whenuapai, March 17, 2001. Forward cockpit - instrument panel and port console. At the front of the console on the lateral panel are trim and U/C controls, emergency brake, and fuel dump selector. Moving aft past the engine switches and the AIL servo control (red), are the throttle, other fuel and trim controls. At the lower left is the UHF (COMM1) and then VHF (COMM2) control panels. The associated COMM/IDENT display is above the multifunction display screen (centre top). An oxygen hose can be seen on the sidewall. Further aft and not visible are the IRS and ground fire control panels, and the No.1 circuit breaker panel.
