Aermacchi MB339-CB

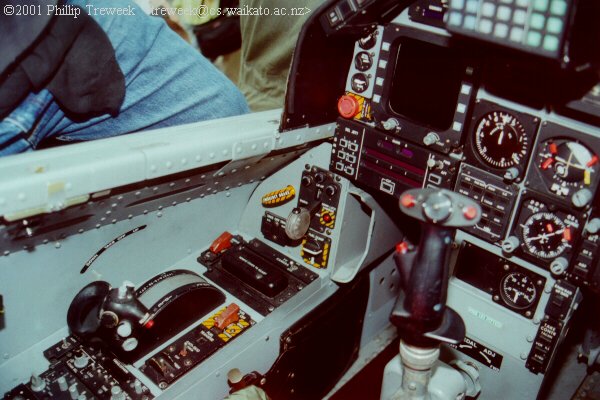

Taken at Whenuapai, March 17, 2001. Rear cockpit - port console and instrument panel. There are some differences between this and the arrangement in the front cockpit. (See W01MAC56). At the front of the console are trim and U/C controls, emergency brake, and fuel dump selector. Moving aft past the TV camera switch, is the throttle, other fuel and trim controls. At the lower left is the UHF (COMM1) and then VHF (COMM2) control panels. The COMM/IDENT display is above the CRT screen (centre top).
